CIS 5512 - Operating Systems

Project 3: Write a simple device driver

Due date

Dec 6, 2016, 11:59pm (Please demo your project on Dec 07)

Goal

The goal of this project is (1) to obtain a good understanding of device drivers and file systems, (2) to learn the uses of a Loadable Kernel Module, and (3) to understand the difference between regular file I/O and memory-mapped file I/O.

Details

The project consists of three sub-projects.

The first sub-project is very simple; you only need to follow the steps to create a file system within a file. You will be asked to point out the meaning of each step during the demo. In particular, you need to distinguish the concepts of "device", "file system", and "mount point".

The second sub-project is to write two programs. The first is to use regular file I/O to count the number of each character (e.g., in "see", there is one 's' and two 'e's) in link. The second is to use memory-mapped file I/O to do the same thing. Compare the execution time of the two.

In the third sub-project, you need to write a device driver as well as a user program that uses it. Please follow the first article in the references to develop a device driver that registers a pseudo device and that implements the driver functions. So that in the user program you can open the pseudo device and read it. The read call should return the path name of the current working directory. You are not allowed to use the API getcwd. Instead, you have to write some kernel code to retrieve the path name. One of the purposes of this sub-project is to illustrate that, by writing a kernel module, your can add functionalities to the kernel without recompiling and reinstalling it, which is very different from what you did in the second project.

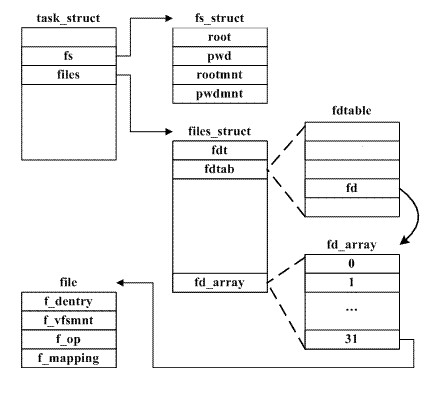

The graph below shows where the current working directory, pwd, is stored (current->fs->pwd): it is a path struct field inside fs_struct.

Hints

• The following code returns a copy of pwd in a thread-safe way: get_fs_pwd(current->fs, &pwd) (but don't forget path_put(&pwd) after you use pwd).
• d_path(&pwd,buf,buf_len) converts a struct path object to an ASCII path name. Below are the header files you may need at least:


  #include <linux/init.h>
  #include <linux/module.h>
  #include <linux/sched.h>// current
  #include <linux/dcache.h> // d_path()
  #include <linux/fs_struct.h>// fs_struct, path


  Pay attention to the comment for d_path(): "Callers should use the returned pointer, not the passed in buffer, to use the name!".
• You can either declare a char array as a global variable or use kmalloc to allocate a buffer for storing the string of the path (don't forget to call kfree in the latter case).
• Don't copy data to user space directly. Use copy_to_user/copy_from_user and get_user/put_user to copy data between kernel and user spaces if you don't want to crash your system. They internally check whether the pointer parameters are valid. Please refer to here, here, and here.
• If your kernel version does not have d_path exported, you can use dentry_path_raw. Note that this function requires its first parameter as struct dentry *; there is such a field inside the path structure, so pwd.dentry should work.
• Note that the Linux kernel code keeps evolving. The description and functions above are true for most of the recent kernel versions, but don't be surprised if some specific details do not apply to your version. If you are uncertain whether a specific symbol, e.g., d_path, has been exported by your kernel version, you can run the command cat /proc/kallsyms | grep d_path to make sure. Please refer to here for more details about kernel exported symbols.
• If you fail to install the kernel module due to errors "module verification failed...module has bad taint", don't panic. That is because your kernel has been configured with a security option requiring you to manually sign modules. Please follow the step of "MANUALLY SIGNING MODULES". You can find a concrete example here (answer provided by "P Royo").

Submission

Your submission should include the code, a readme file briefly describing your design, how to compile/use your code and the contribution in the case of pair programming, and a report which consists of the following parts:

• Is /proc a file system? We used one of the functions in the second project (cat /proc/$pid/maps); please enumerate five other functions that you like most. In addition to peeking (i.e., reading) kernel secrets, can you also write to /proc? If so, please give one example.
• Is /dev a file system? What are pseudo devices? Try cat /dev/urandom | base64, and describe how the system works in this example.
• What are the uses of Loadable Kernel Modules? Is it possible to implement Project 2 (i.e., reading through the user space of a given process) using LKM?

Environment

Linux (any kernel after 2.6 is fine) and C/C++.

References

You only need the first reference for coding. If you have time and interest, you can read other articles.

• The Linux Kernel Module Programming Guide, Chapter 1--4. Peter Jay Salzman et al., 2007. link
  (Please skip Section 1.2.1, which is unnecessarily confusing. If you find the guide too obscure you can jump to a more straightforward article link; for Ubuntu users the step "Preparation: Installing Kernel Module Compilation Requirements" can be skipped safely.)
• Special Devices and File Systems. Paul Krzyzanowski, 2012. link.
• /proc link and link.
• The sysfs Filesystem. Patrick Mochel. link
• How is /dev maintained? (udev – A Userspace Implementation of devfs). Greg Kroah-Hartman, 2003. link
• ramfs, rootfs and initramfs. Rob Landley, 2005. link
