A Bridge is a box with ports (usually two) to LAN segments. It operates in promiscuous mode at the data link layer (i.e. at the level of frames, not signals), it examines all frames and it recognizes where they came from, and where they are going to. It selectively (frame filtering) transfers frames from any port to other ports. It does not propagate noise signals and defective frames as it was the case for repeaters (at the physical layer). It adaptively recognizes which machines are reacheable from a port. It reduces traffic on each port and it improves security since each port will only transmit frames directed to nodes reacheable from that port (thus one does not overhear irrelevant traffic).

Bridges are normally used to connect LAN segments within a limited geographic area (local bridges), like a building or a campus. But they are also used in the network of an enterprise to interconnect LANs: a bridge in a LAN is connected through some long distance channel (for example, a line provided by a common carrier) to a bridge in a distant LAN (remote bridges). Usually bridges connect segments using the same data link protocol, but some modern bridges can convert between different data link protocols (for example, ethernet and token ring).

Bridges can be transparent (usually in Ethernet lans), also called spanning tree bridges, where the aim is to minimize all work required to set up a bridge and have instead the hardware and software set up the bridge with the information required for routing frames correctly. Or bridges can be source routing bridges (usually in token ring lans) where the route from sender to receiver are preset at the sender and included in the frame. We will only discuss transparent bridges.
All the nodes reacheable from a node through segments and bridges will receive broadcast messages sent by that node. They constitute the broadcast domain of the given node.

Bridges are able to filter frames on the basis of any information available at the data link level in the frame. For example, since an Ethernet frame has a field with information about the higher level protocol used in the data portion of the frame, a bridge could be programmed to filter out frames that use selected protocols.

Loop-free LANs and the Backward Learning Algorithm

  The algorithm is run independently at each bridge.
  It makes the natural assumption: If a frame from a node
  j is received through port i then messages to j will go
  out through i.
  It keeps a cache of pairs of the form [i,j]
  where i is a port (of the current bridge) and j
  is the address of a node (usually an ethernet address)
  reacheable from the current bridge through port i.
  This cache is initially empty.

  When the bridge receives a frame from a port i it determines the
  physical addresses of its source, j, and of its destination, k.
  If k is a multicast address, then the frame is forwarded through
  all the ports except the one through which it was received
  (flooding).

  If the pair [i,j] is not already in the cache, it is added to it.

  If [i,k] is in the cache then
     the frame is discarded.
  else if there is a pair [h,k] in the cache then
     the frame is forwarded through port h
  else
     it is forwarded to all ports (flooding) except i.

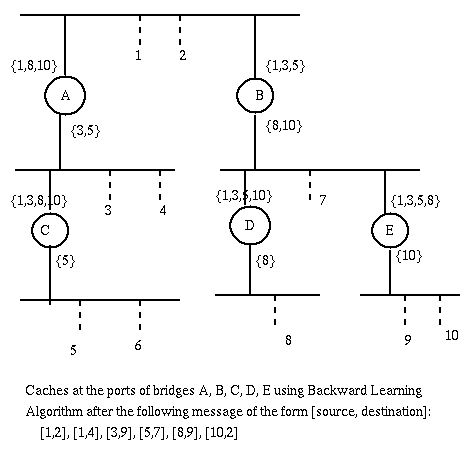

Example

This algorithm does not assume any knowledge on the part of a bridge about the structure of the network. It just uses the address information in the frames about senders and receivers.

LANs with Loops and the Distributed Spanning Tree Algorithm

• to increase reliability (since multiple paths between two nodes become possible - though they will not be active at the same time, an inactive one becomes active if the previously active one becomes not operational),
• to increase flexibility in responding to changes in traffic (since we may change what bridges and ports are active at a time, thus changing delays and traffic).

The intent of the Distributed Spanning Tree Algorithm is to identify the node (i.e. bridge) with smallest id, the root-bridge of the network; Then for every other node, to identify the port, root-port, through which goes the shortest path to the root-bridge. Finally for every lan segment to choose the bridge in the shortest path to the root-bridge, the designated bridge of the segment, and the port through which that segment accesses that bridge, the designated port. The spanning tree will include only the bridge ports that are either root-ports or designated-ports. For example, if we take as cost of a path the number of bridges it traverses, the following network is changed as indicated.

The Distributed Spanning Tree Algorithm is interesting as an example of the kind of algorithm that works in a distributed environment where no node has full knowledge of the network. Later in the course we will discuss more in detail the difficulties that arise in distributed environments.

In the Distributed Spanning Tree Algorithm bridges exchange messages using the standard set by IEEE 802.1. These messages, called configuration messages, use multicasting to a multicast group consisting of all and only the bridges on the same segment as the transmitting bridge. These messages are sent at network power-up to acquire information on the network topology, and then again whenever changes in topology are detected. Note that these configuration messages represent control traffic, that is overhead. A configuration message identifies, among other things:

• the id of a bridge called the root-bridge,
• the number of segments traversed in going from the transmitting bridge to the root bridge (this number if called the cost-to-root of this path; one could use other ways to measure the cost of a path).
• the id of the transmitting bridge,

• the id of the root bridge of M1 is less than the root bridge of M2, or
• they are the same and the cost-to-root of M1 is less than the cost-to-root of M2, or
• they are the same and the id of the transmitting bridge of M1 is lower than the id of the transmitting bridge of M2.

Distributed Spanning Tree Algorithm

   Initially each bridge sends a configuration message on each
   of its ports. This message has this bridge's id as root-bridge and as
   transmitter and has 0 as cost. This message is saved at each port as
   configuration for that port and as configuration for the bridge.

   When a message is received at a port,
   IF the received message is better than the current configuration
      of the port THEN
      it becomes the new configuration of this port;
      IF it becomes the port with the best configuration THEN
         it is said to be the root-port of the bridge and to be active.
         [The root-port leads to the root-bridge and the first bridge
          next on that path acts as the designated bridge of the current
          bridge.]
         The configuration of the root-port, with the transmitting bridge
         field set to this bridge, and the cost incremented by one, if
         better than the configuration of the bridge, becomes the new
         configuration of the bridge. Then this new configuration is
         compared to the configurations of all the non root ports. If the
         configuration of a port is worse than the configuration
         of that bridge, the port it is said to be active,
         and the bridge configuration is transmitted through that port,
         otherwise the port will become inactive.
         [In reality if a port is to go from the inactive to the active
          state, this transition will be delayed some time to make sure
          that other ports that were supposed to go from active to
          inactive have actually done so. This is required to avoid
          transient loops between bridges.]
      ELSE
         this port becomes inactive;
   END IF

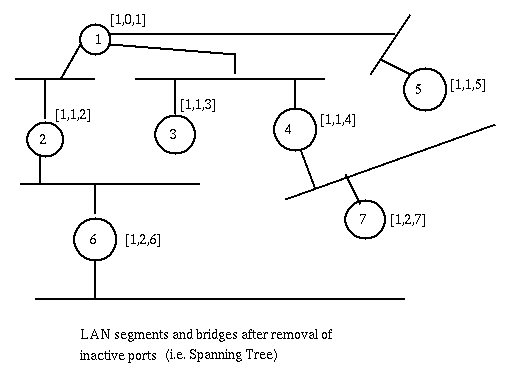

   The Spanning Tree consists of the bridges and their active ports
   and the segments thus connected.

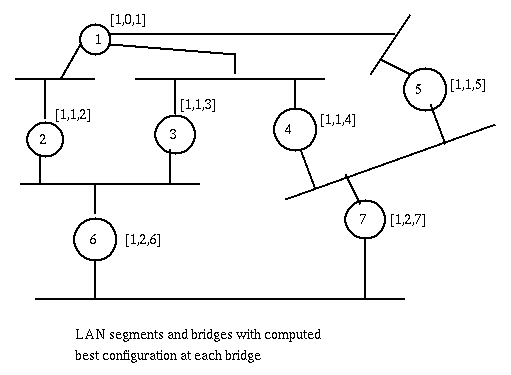

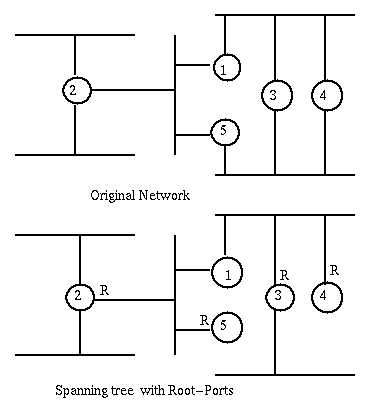

Example

Extension

   Each stored configuration message keeps an extra field representing
   the age of the message, i.e. the time since the root bridge
   sent the configuration message upon which this message is based.
   It is incremented each unit of time
   (timer-tick, usually 2 seconds) and when it reaches a preset
   maximum value maxAge (usually 20 seconds), the stored
   configuration for the port is reset to the initial value (current
   bridge as root bridge and source, cost and age set to 0).
   Then at this bridge is recomputed the best configuration (and
   root, cost to root, and root-port), thus another previously inactive
   port can become active.

   The root bridge sends at regular intervals Hello-time an heart-beat,
   an Hello-message to the bridges for which it is the designated
   bridge.

   When a bridge receives the Hello  message it resets the age field
   for the receiving port to 0 and forwards its own configuration with
   age set to zero to the bridges for which it is the designated bridge.

   [maxAge should be larger than Hello-time plus the propagation time for the
   hello messages from the root to all the nodes in the spanning tree.]

Notice the interesting story we have seen about bridges:

• Bridges, arranged in a tree, use the backard learning algorithm to learn the configuration of the network and minimize traffic.
• Redundant bridges are needed for reliability. But they introduce loops that prevent the use of the backward learning algorithm.
• We use the distributed spanning tree algorithm to eliminate dynamically loops.
• We use heart-beat transmission and timeouts to recognise failures in bridges and segments.

Routers

• Source Routing, where the decision on what intermediate nodes to cross is made before a packet is sent; then the packet knows from the beginning where to go next after arriving at an intermediate node.
• Virtual Circuit Routing, where a connection is established before the first packet is sent. Then each packet as it travels will contain the id of a virtual circuit (this id may change as the packet moves across the network) and each intermediate node will contain a table with 4 entries, an entry-port, an entry-virtual-circuit-id, an exit-port, and an exit-virtual-circuit-id. Routing at a node determines the port the packed arrived from and its virtual circuit, then it will send the packet forward with the exit virtual circuit id and using the exit port as indicated by the table.
• [Packet] Routing, where each packet is individually routed in accordance to a next-hop routing table.
  We will only consider packet routing.

  Routing involves two basic activities: running routing algorithms to determine routes, as expresed by routing tables [also called forwarding tables], and using the routing tables to move packets across the network. The latter activity is easier and it is called switching. Routing tables contain information that will indicate for each packet on the basis of its final destination (usually an IP address) where to go next (next-hop forwarding) as to the port to be used and the physical address of the next router. Cycles can exist in the graph that has routers as nodes and ports as edges. The routing tables are built to work well also in the presence of cycles. It is important that routing tables be not too large.

  Evaluation of Routing Algorithms:

  • Route quality (optimality): network utilization, path length, delay, bandwidth, communication cost, reliability
  • Overhead (simplicity): control messages, processing, state (i.e. memory required)
  • Speed of convergence to best routes
  • Robustness: Responsiveness to topology changes

  Routing characteristics:

  • Centralized/decentralized
  • Static/Dynamic
  • Location of decisions (hop-by-hop[decision at each node]/Source-routing[decision at source])
  • Frequency of decision (per packet, per session, per topology change)
  • Single Path/Multipath: The routing algorithm may provide alternative routes to be taken to avoid congestion, or improve throughput, ..
  • Flat or Hierarchical: i.e. all routers are at the same level, or routing takes place at two levels, one to get to the general area, the other to navigate the local neighborhood.
  • Protocol: Information distribution and route computation algorithm

  We consider two routing algorithms, one centralized (the full topology of the network is know at each router), Dijkstra's shortest path algorithm, and one distributed (a router only knows its neighbors), the vector distance routing algorithm.

  Dijkstra's Shortest Path Algorithm

  Given a graph (i.e. we know its vertices and edges with non-negative weights associated with its edges) and a designated source vertex s determine the shortest paths from s to all other vertices and their lengths.

     Initialize arrays R and D so that for each vertex v of the graph, R[v] = NIL,
     and D[v] is infinity except for s where D[s] = 0.
     Finally let the set S consist of all the vertices of the graph.
     Our intent is that for all vertices v,  D[v] represents the current best
     estimate of the cost of the paths from s to v (or viceversa) and
     R[v] is the next node (next-hop) in the current best path from
     v to s.


     While S is not empty
        Let u be an element of S with minimal D value and remove it from S.
        For each element v in the neighborhood of u that is in S
           Let w = D[u] + cost-of-edge[u,v];
           If D[v] is greater than w then //We are improving current path to v
              Set D[v] to w;
              Set R[v] to u;

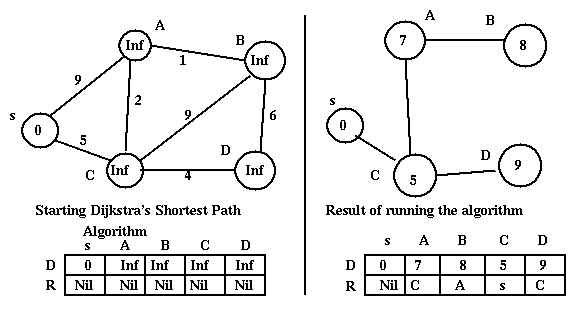

  Example


  Note that the array R tells the next hop for going back to s from any other node, while the routing table must tell us the next hop for going from s to any other node. You should think of a simple algorithm for computing the routing table given R.

  The Dijkstra algorithm is run independently at each vertex after the vertex has collected all the information on the structure of the graph. [There has to be a routing protocol (see below) to make this possible. This routing protocol allows each node to inform all other nodes of its own identity and of its network links, its Link State.] Routing based on Dijkstra's algorithm is called Link State Routing. Link state information is exchanged periodically, or when a new neighbor comes on line or when a link is disabled.

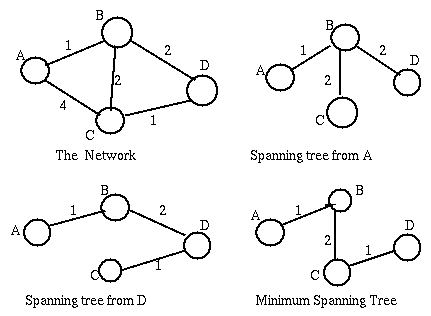

  Note that Dijkstra's Algorithm creates a spanning tree with as root the node where the algorithm is run (s in the discussion above). The algorithm will result in different trees when run at different nodes. These spanning trees are not necessarily minimal (i.e. the sum of the cost of the branches is not minimal). For example:



  However the tree built by the Dijkstra algorithm at s will give the paths of minimal length from to each of the other nodes.

  Vector Distance Routing Algorithm

  In this algorithm (due to Bellman and Ford), each router exchanges routing information, the Distance Vector, with its neighbors, not with all routers. The distance vector algorithm results in the same distances as the Dijkstra algorithm.

     Now each vertex s only knows itself.
     Each vertex keeps a set of triples of the form
     [destination, next-hop, distance]. This set is the distance vector.
     Initially this set is {[s,NIL,0]} and it is transmitted to each neighbor.

     When a vertex u receives a distance vector from its neighbor v
        For each triple [d,n,c] in the received distance vector
           Let w = c + distance from u to neighbor v (assumed to be 1);
           [d,v,w] represents the new found path from u to d with
           next step v;
           If there is no triple of the form [d,x,y] in the distance
              vector of u or
              there is such a triple and (y > w or x=v) then
              Remove [d,x,y], if there, and add [d,v,w] to the distance
              vector of u. [Note that if x=v, we replace the old triple [d,x,y]
              with the new triple [d,v,w] even if y<=w. This is so because it
              is assumed that v has a more recent estimate of the path to d.]

     When a vertex u recognizes that the link to a neighbor v has failed
        Requests distance vector information from its remaining neighbors and
        Recalculate the distance vector using the new neighborhood information.

     A vertex sends a copy of its distance vector to its neighbors
     whenever there has been a change in its own distance vector
     or a failure in its neighborhood


  Here is what the Vector Distance Algorithm does in the case of the graph above:

  Step 0:
    s  {[s,nil,0]}
    A  {[A,nil,0]}
    B  {[B,nil,0]}
    C  {[C,nil,0]}
    D  {[D,nil,0]}
  Step 1:
    s  {[s,nil,0],[A,A,9],[C,C,5]}
    A  {[A,nil,0],[s,s,9],[B,B,1],[C,C,2]}
    B  {[B,nil,0],[A,A,1],[C,C,9[,[D,D,6]}
    C  {[C,nil,0],[s,s,5],[A,A,2],[B,B,9],[D,D,4]}
    D  {[D,nil,0],[C,C,4],[B,B,6]}
  Step 2:
    s  {[s,nil,0],[A,C,7],[B,A,10],[C,C,5],[D,C,9]}
    A  {[A,nil,0],[s,C,7],[B,B,1],[C,C,2],[D,C,6]}
    B  {[B,nil,0],[s,A,10],[A,A,1],[C,A,3],[D,D,6]}
    C  {[C,nil,0],[s,s,5],[A,A,2],[B,A,3],[D,D,4]}
    D  {[D,nil,0],[s,C,9],[A,C,6],[C,C,4],[B,B,6]}
  Step 3:
    s  {[s,nil,0],[A,C,7],[B,C,8],[C,C,5],[D,C,9]}
    A  {[A,nil,0],[s,C,7],[B,B,1],[C,C,2],[D,C,6]}
    B  {[B,nil,0],[s,A,8],[A,A,1],[C,A,3],[D,D,6]}
    C  {[C,nil,0],[s,s,5],[A,A,2],[B,A,3],[D,D,4]}
    D  {[D,nil,0],[s,C,9],[A,C,6],[C,C,4],[B,B,6]}


  Notice that in the example we have glibly talked of "step 1", "step 2", etc. In reality distance vectors are transmitted asynchronously without any requirement that all nodes proceed in lockstep.

  A problem with the distance vector algorithm is its slowness in propagating the recognition of link failures (it is called the count-to-infinity problem). For example in the following graph

        +---+          +---+           +---+
        | A |----------| B |-----------| C |
        +---+          +---+           +---+


  suppose that we have the following distance vectors:

     At A:    {[A,NIL,0], [B,B,1], [C,B,2]}
     At B:    {[A,A,1], [B,NIL,0], [C,C,1]}
     At C:    {[A,B,2], [B,B,1], [C,NIL,0]}


  and the link from B to C fails. So B discards the triple [C,C,1] and recomputes the vector using the information from A, thus it adds the triple [C,A,3]. This change in turn is propagated to A that has to change its C triple to [C,B,4], that causes B to change to [C,A,5], .. and so on until "infinity" is reached and A and B can finally conclude that C is unreacheable! An heuristic used is called split-horizon: A would send to B the triple [C,B,+infinity] instead of [C,B,2]. This triple will be ignored by B as long as B is connected directly to C. But when C becomes inaccessible that +infinity informs B that there is no alternative path to C. [This heuristic does not solve more complex cases of count-to-infinity problems.]

  Note that we say that Dijkstra's algorithm is centralized because it requires the collection of global information about the graph before we can run the algorithm. In the Distance Vector algorithm instead we need no information about the graph initially, and the algorithm advances using the current information when it receives a distance vector from a neighbor.

  Routing algorithms, i.e. algorithms used for computing routing tables, are implemented using routing protocols. Examples of such protocols are RIP (Routing Information Protocol), EGP (Exterior Gateway Protocol), IGRP (Interior Gateway Routing Protocol). The packets exchanged in the routing protocols are called routing packets and they contain control information, i.e. they are overhead. ICMP (Internet Control Message Protocol) is a protocol used to propagate echo and reply messages that test the reacheability of nodes in the network, and to report loss of packets due to time expiration. IRDP (ICMP Router Discovery Protocol) is used to identify routers and to report their identity. The routing protocol used with the Shortest Path Algorithm is OSPF(Open Shortest Path First), with the Distance Vector is RIP (Routing Information Protocol).

  Packet Switch

  A packet switch is a box with a number of ports, some to other packet switches, some to computers. Usually the connection to computers are slower than the connections to other packet switches. A packet switch is used to interconnect networks with similar or dissimilar structures and it operates above the data link level. It is a generic term that includes bridges, routers, and gateways, though it used to mean an IMP in the old ARPANET. It tends to stress the switching functionality (i.e. how packets are moved across the network) above the ability to determine routing information. A packet switch uses a store-and-forward strategy with the messages it receives. Thus congestions in the use of a connection do not result (unless we overrun the available buffers) in the loss of data, only in some delays. Packet switches may use hierarchical addresses, with a [switch part, port part]. So a computer will be known by the identity of the packet switch it is connected to and of the position of the port it uses on the switch.


  Gateways

  It used to mean the same as packet switch, now it usually means a device that works above the network layer and can perform complete translations between different protocol stacks.
